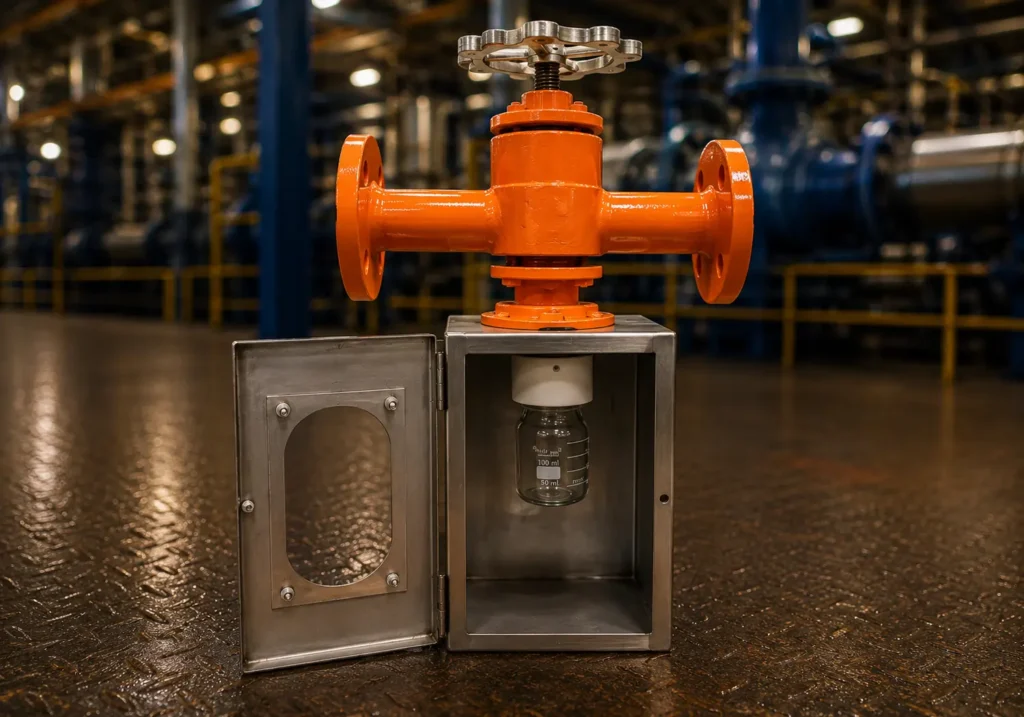

PTFE Lined Sampling valve
Home » Products » PTFE Lined Industrial Valves » PTFE Lined Sampling valve
Send Us A Message
Specifications for PTFE Lined Sampling valve
| Product Name | PTFE Lined Sampling Valve |
| Size Range | 15 mm to 50 mm (½” to 2”) |
| Pressure Rating | PN 10 / PN 16 / ANSI 150 |
| Body Material | Cast Iron, Cast Steel, Stainless Steel |
| Lining Material | Virgin PTFE / PFA |
| Stem Material | SS 304 / SS 316 |
| End Connection | Threaded / Flanged / Welded |
| Design Standard | ASME B16.34 / BS / DIN |
| Temperature Range | -20°C to 180°C |
Features
- Ensures safe and contamination-free sampling
- Suitable for highly corrosive chemicals, acids, and alkalis
- Smooth and precise flow control for accurate sampling
- Compact design for easy installation and operation
- Available in threaded, flanged, and welded connections
- Safe and reliable operation in critical processes
Durable PTFE Lined Sampling Valve Exporter
PTFE Lined Sampling Valves are designed for safe, accurate, and contamination-free sampling of corrosive and aggressive process fluids. These valves feature a strong metal body lined with high-quality virgin PTFE, providing excellent resistance to acids, alkalis, and other reactive chemicals. The precise design ensures controlled flow during sampling, reducing risk and improving operational safety.
Widely used in chemical, pharmaceutical, petrochemical, fertilizer, and water treatment industries, PTFE Lined Sampling Valves offer reliable performance, leak-proof operation, and long service life. Their non-stick PTFE lining ensures easy cleaning and prevents product contamination, making them ideal for critical process applications.
Why Choose PTFE Lined Sampling valve ?
PTFE Lined Sampling Valves are ideal for safe and accurate sampling of highly corrosive and hazardous fluids. The virgin PTFE lining provides excellent chemical resistance, ensuring protection against acids, alkalis, and aggressive process media.
They offer leak-proof operation, precise flow control, and contamination-free sampling. With durable construction and low maintenance needs, PTFE Lined Sampling Valves are widely used in chemical, pharmaceutical, petrochemical, and water treatment industries where safety and reliability are essential.
Applications
- Pharmaceutical Industry
- Chemical Industry
- Water Treatment Plants
- Petrochemical Industry
- Fertilizer Industry
- Effluent Treatment Plants (ETP)
- Wastewater Treatment Systems
- Textile Industry
