PTFE Lined Plug Valve

Send Us A Message

+91 97145 93876
+91 97145 97293

flowlinevalve@gmail.com
sales1@flowlinevalve.com

Get A Quote

Specifications for PTFE Lined Plug Valve

Product NamePTFE Lined Plug Valve
Size Range25 mm to 200 mm (1” to 8”)
Pressure RatingANSI 150 / PN 10 / PN 16
Body MaterialCast Iron, Cast Steel, Stainless Steel
Lining MaterialVirgin PTFE / PFA
Plug MaterialPTFE Lined Plug
End ConnectionFlanged End
Design StandardASME B16.34 / BS / DIN Standards
Face to Face StandardASME B16.10
Flange StandardANSI B16.5 / DIN / BS
Temperature Range-20°C to 180°C
Testing StandardAPI 598

Features

  • Excellent resistance to corrosive chemicals and aggressive media
  • Leak-proof sealing for safe and reliable operation
  • Low operating torque with smooth plug rotation
  • Bubble-tight shut-off performance
  • Anti-stick and non-contaminating flow passage
  • Robust construction for long service life

Trusted PTFE Lined Plug Valve Manufacturer in India

PTFE Lined Plug Valves are engineered for reliable flow control in highly corrosive and aggressive chemical applications. These valves are manufactured with a durable metal body internally lined with high-quality virgin PTFE, ensuring outstanding resistance against acids, alkalis, solvents, and reactive chemicals. The precision-designed plug mechanism provides smooth operation, low torque performance, and bubble-tight sealing for safe industrial processes.

Designed for long-lasting durability and minimal maintenance, PTFE Lined Plug Valves are ideal for chemical processing, pharmaceutical, petrochemical, fertilizer, and water treatment industries. Their non-stick PTFE lining prevents contamination and corrosion, making them suitable for handling sensitive and hazardous fluids under demanding operating conditions.

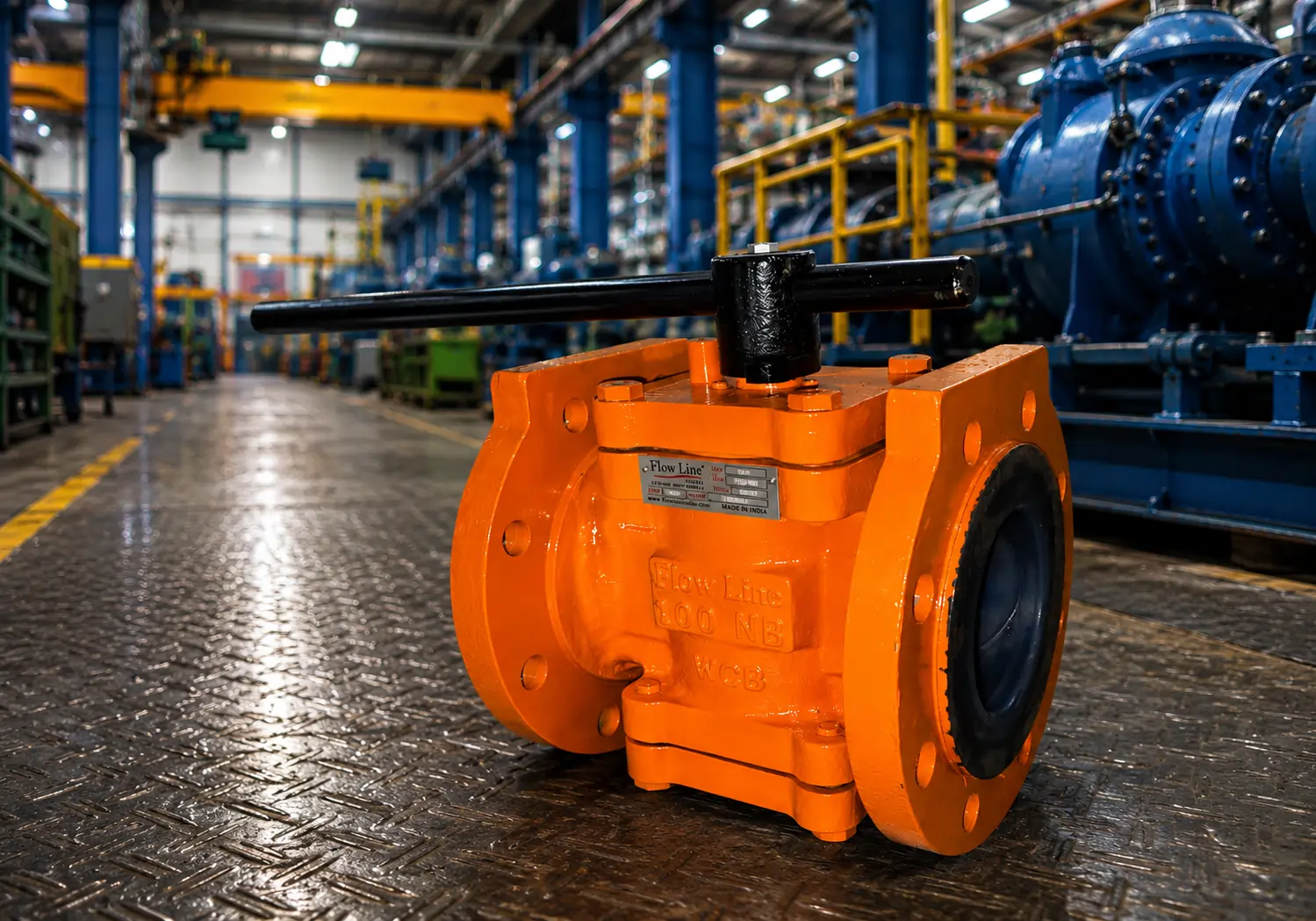

PTFE Lined Plug Valve

Our Product range

Why Choose PTFE Lined Plug Valve ?

PTFE Lined Plug Valves are the preferred choice for industries handling highly corrosive and hazardous fluids because they combine strong mechanical strength with superior chemical resistance. The virgin PTFE lining provides excellent protection against acids, alkalis, and solvents, ensuring long-term performance without corrosion or contamination.

These valves are highly durable, low maintenance, and designed for safe and efficient flow control in critical applications. Their leak-proof performance and non-reactive lining make them ideal for chemical, pharmaceutical, petrochemical, and allied industries where safety, purity, and operational reliability are essential.

Applications

  • Oil & Gas Industry
  • Pharmaceutical Industry
  • Pesticide & Agrochemical Industry
  • Process Engineering Industries
  • Fertilizer Industry
  • Pulp & Paper Industry
  • Effluent Treatment Plants (ETP)
  • Textile Industry
