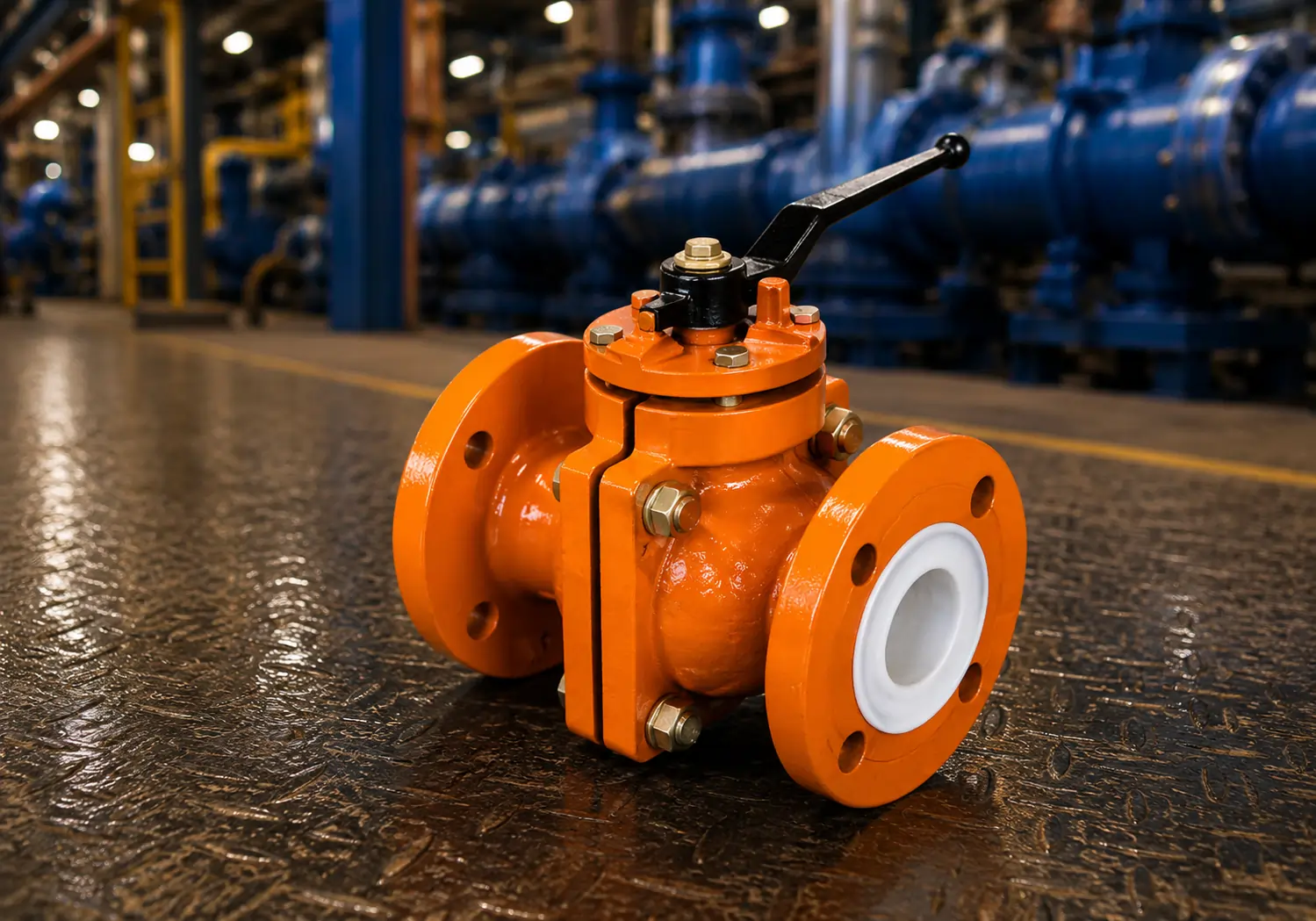

PTFE Lined Ball Valve
Send Us A Message
Specifications for PTFE Lined Ball Valve
| Valve Type | Ball Valve (Floating / Fixed Type) |
| Lining Material | PTFE |
| Body Material | Cast Iron / Carbon Steel / Stainless Steel |
| Size Range | 15 mm to 300 mm (½” to 12”) |
| Pressure Rating | PN10 / PN16 / Class 150 |
| End Connections | Flanged (RF / FF) |
| Operation | Lever / Gear / Pneumatic / Electric Actuator |
| Temperature Range | -20°C to 180°C |
| Design Standard | ANSI / ASME / DIN |
| Leakage Class | Class VI (Bubble Tight Shut-off) |
| Flow Type | Full Bore / Reduced Bore |
| Applications | Chemical, Pharmaceutical, Petrochemical, Corrosive Media |
Features
- Excellent Corrosion Resistance due to PTFE (Teflon) lining, suitable for highly corrosive chemicals
- Leak-Proof Sealing ensuring safe and reliable operation under high pressure
- Smooth Flow Control with precise quarter-turn operation for easy ON/OFF control
- High Chemical Compatibility ideal for acids, alkalis, solvents, and aggressive media
- Low Friction Design reduces torque requirement and ensures smooth valve operation
- Temperature Resistance suitable for a wide range of industrial operating conditions
Industrial PTFE Lined Ball Valve Supplier & Manufacturer
Why Choose PTFE Lined Ball Valve ?
PTFE Lined Ball Valve is the preferred choice for industries dealing with highly corrosive and aggressive fluids. Its PTFE (Teflon) lining provides excellent resistance against acids, alkalis, and chemicals, ensuring long-lasting performance and safe operation. The robust construction offers bubble-tight sealing, preventing leakage and enhancing process safety.
With smooth quarter-turn operation, low friction design, and minimal maintenance requirements, these valves deliver reliable flow control in demanding environments. Their superior chemical compatibility and durability make them ideal for chemical, pharmaceutical, water treatment, and process industries where efficiency and safety are critical.
Applications
- Chemical Industry
- Pharmaceutical Industry
- Water Treatment Plants
- Petrochemical Industry
- Fertilizer Industry
- Pulp & Paper Industry
- Food & Beverage Industry
- Textile Industry
