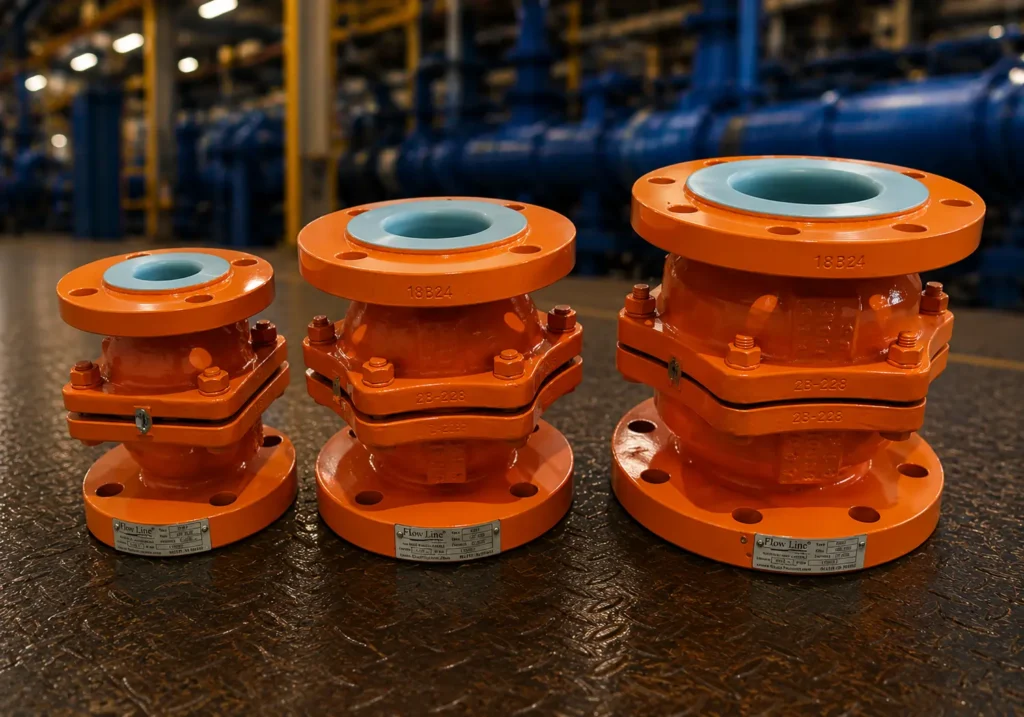

PTFE Lined Ball check valve
Home » Products » PTFE Lined Industrial Valves » PTFE Lined Ball check valve
Send Us A Message
Specifications for PTFE Lined Ball check valve
| Product Name | PTFE Lined Ball Check Valve |
| Size Range | 15 mm to 200 mm (½” to 8”) |
| Pressure Rating | ANSI 150 / PN 10 / PN 16 |
| Body Material | Cast Iron, Cast Steel, Ductile Iron, Stainless Steel |
| Lining Material | Virgin PTFE / PFA |
| Ball Material | Solid Rubber / PTFE Coated / SS Encapsulated |
| End Connection | Flanged End |
| Design Standard | ASME B16.34 / BS / DIN |
| Face to Face | ASME B16.10 |
| Flange Standard | ANSI B16.5 / DIN / BS |
| Temperature Range | -20°C to 180°C |
Features
- Reliable backflow prevention with ball type sealing mechanism
- Bubble-tight shut-off for leak-free performance
- Excellent corrosion resistance with virgin PTFE lining
- Suitable for slurries and viscous fluids
- High efficiency with minimal pressure loss
- Ideal for chemical, pharmaceutical, and process industries
PTFE Ball Check Valve Exporter in India
PTFE Lined Ball Check Valves are designed to prevent backflow in pipelines handling highly corrosive and aggressive fluids. These valves feature a robust metal body lined with virgin PTFE, providing excellent resistance against acids, alkalis, and other reactive chemicals. The ball-type sealing mechanism ensures smooth, automatic operation with reliable one-way flow control and bubble-tight shut-off performance.
Widely used in chemical, pharmaceutical, petrochemical, fertilizer, and water treatment industries, PTFE Lined Ball Check Valves offer long service life, low maintenance, and contamination-free operation. Their non-stick PTFE lining ensures durability and safe performance even in the most demanding industrial environments.
Why Choose PTFE Lined Ball check valve ?
PTFE Lined Ball Check Valves are an excellent choice for handling highly corrosive and aggressive fluids with reliable backflow prevention. The virgin PTFE lining provides superior chemical resistance, ensuring long service life and protection against corrosion and contamination even in harsh industrial environments.
These valves offer smooth automatic operation, bubble-tight sealing, and minimal maintenance requirements. Their durable construction and non-stick lining make them ideal for chemical, pharmaceutical, petrochemical, and water treatment industries where safety, reliability, and efficiency are essential.
Applications
- Effluent Treatment Plants (ETP)
- Process Engineering Industries
- Water Treatment Plants
- Petrochemical Industry
- Fertilizer Industry
- Pulp & Paper Industry
- Oil & Gas Industry
- Textile Industry
